YE4(IE4)超超高效率三相异步电动机

机座号/FRAME SIZE:80~355工作制 /DUTY OF WORK: S1

功率/OUPUT:0.75~400kw冷却方式/COOLING METHOD:IC411

能效等级/ENERGY EFFICIENCY GRADES: GB 18613-20121级

适用于:需要节能的连续运行能频繁工作的一般使用场所。如风机、水泵等

Applications: Energy saving appltcations where continuous of frequent duty is required pumps. Fans.

特点:其外形美观、高效节能，F级绝缘，防护等级为IP55，电机噪声低、振动小，运行可靠.

Features: These series motors have many virtues, including beautiful profile, high efficiency and energy saving, class F insulated, the protective class is IP55, low noise, little vibration, running smoothly,.

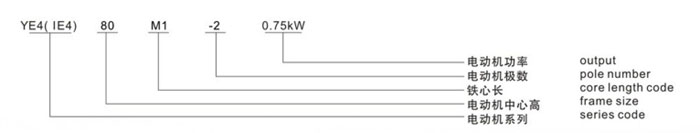

产品型号及含义：

订货须知：

本样本所提供的数据仅供用户参考，具体数据允许变动，订货前请惠予联系。

订货时请注明所需电动机产品型号、功率、同步转速、电压、频率和安装结构等。

此样本所有参数仅作参考选型用，如有变更，恕不奉告。

The technical data given in this catalogue are for reference only and subject to altern ations.Before ordering please contact us.

The follwing specification are provided for the order:motors type,synchronous speed,voltage,trequency and mounting.uous(S1).

The technical data given in this catalogue are for reference only,and the subject would be changed withoutinform.

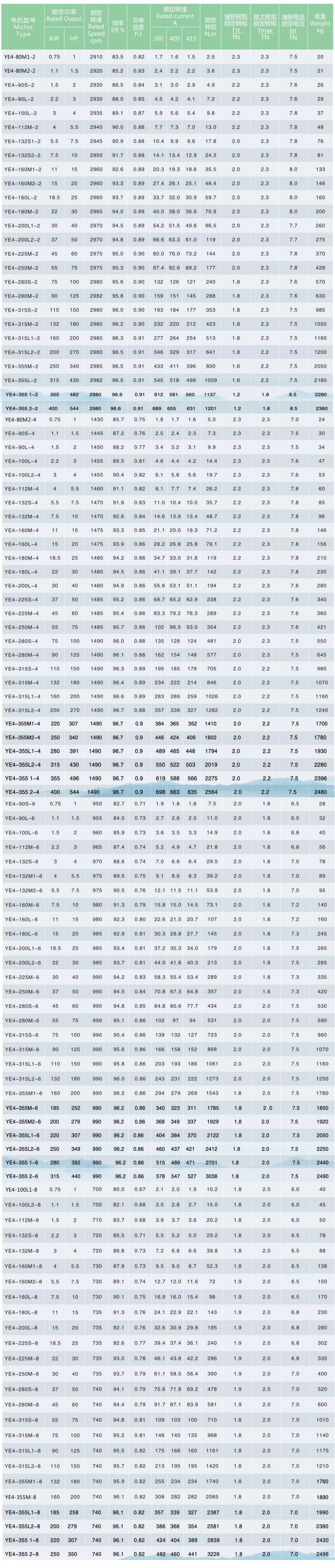

技术性能参数：
